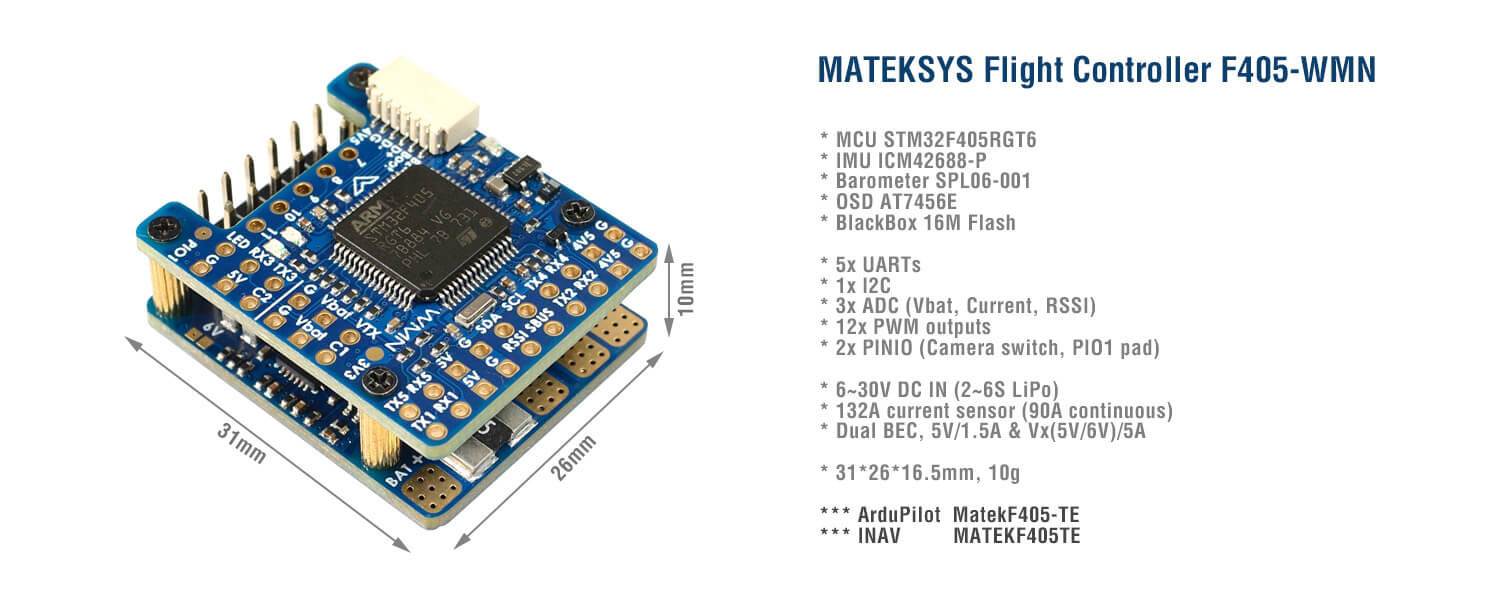

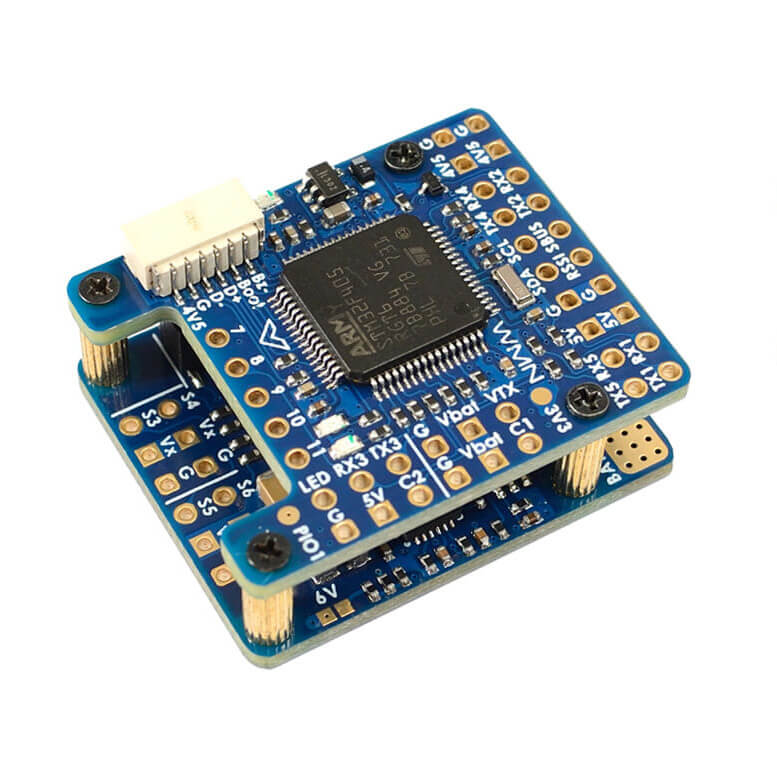

Mateksys F405-WMN flight controller

Mateksys F405-WMN flight controller

The Matek F405-WMN flight controller is a very small size but very feature-rich flight controller produced by the famous brand Mateksys. This flight controller is a great pick if you don’t have a lot of space but still want a feature rich flight controller that is capable of running INAV or ArduPilot.

Key features of this flight controller are:

• 12x PWM outputs
• 5x UARTS
• 1x I2C
• 3x ADC (Vbat, Current & RSSI)
• 2x analog camera input, switchable (PINIO, Camera switch, PI01 pad)
• Dual BEC, 5V/1.5A & switchable 5V/6V 5A for servo’s.

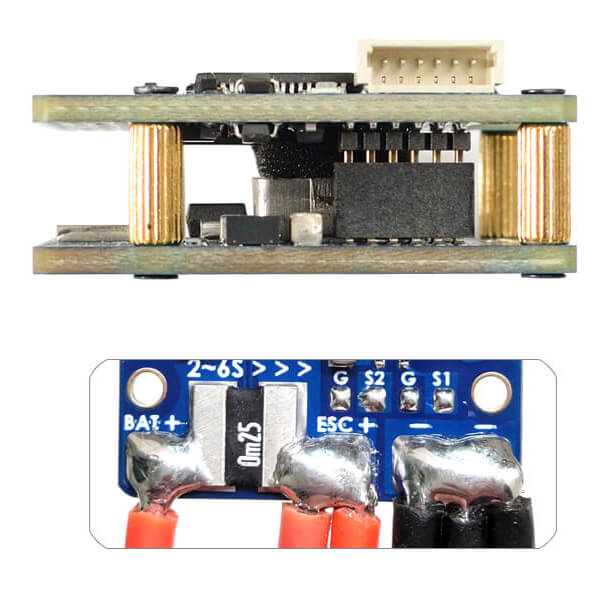

• 132A current sensor (90A continuous)
• 6-30V DC in (2-6S LiPo)
• 31*26*16.5mm, 10 gram.

Model: Mateksys F405-WMN flight controller

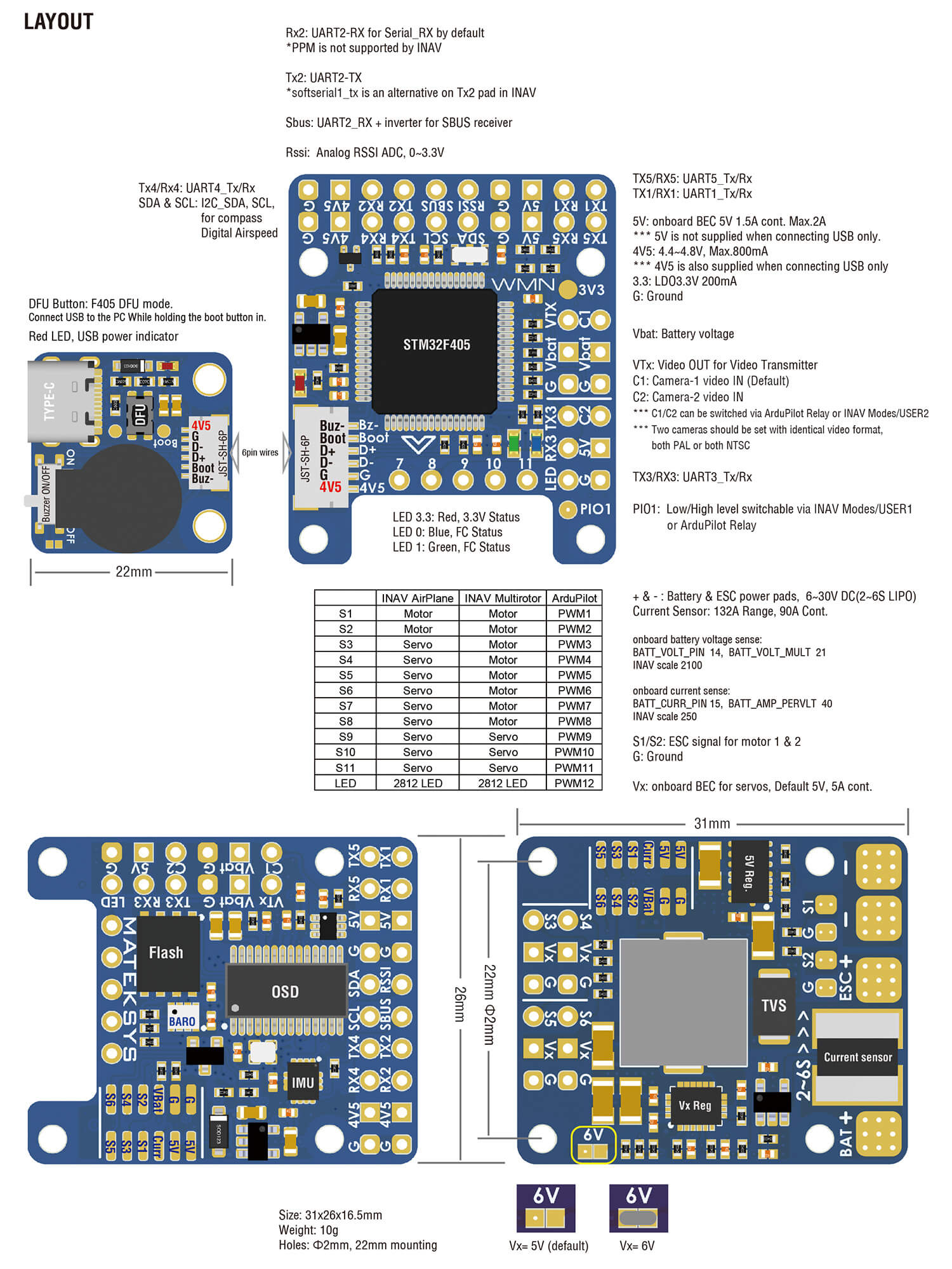

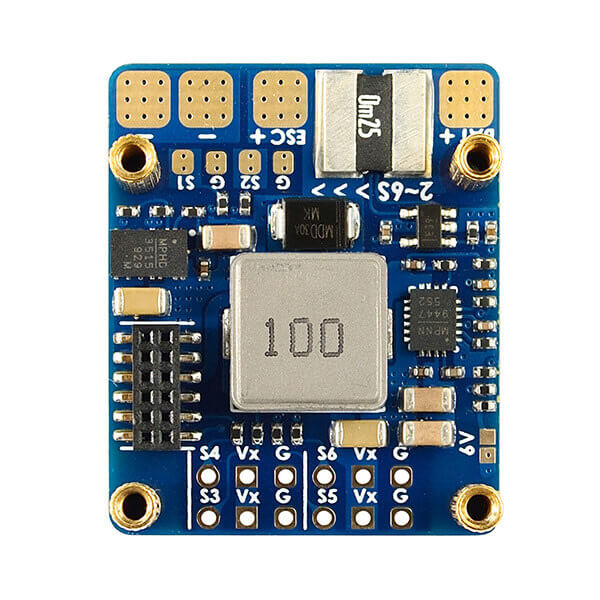

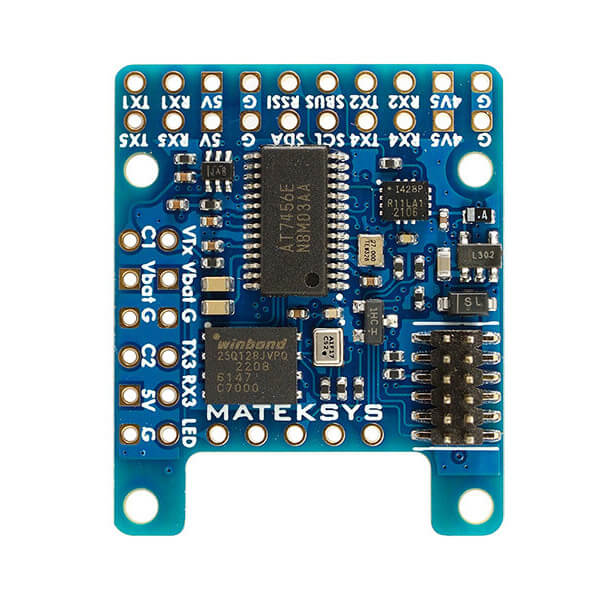

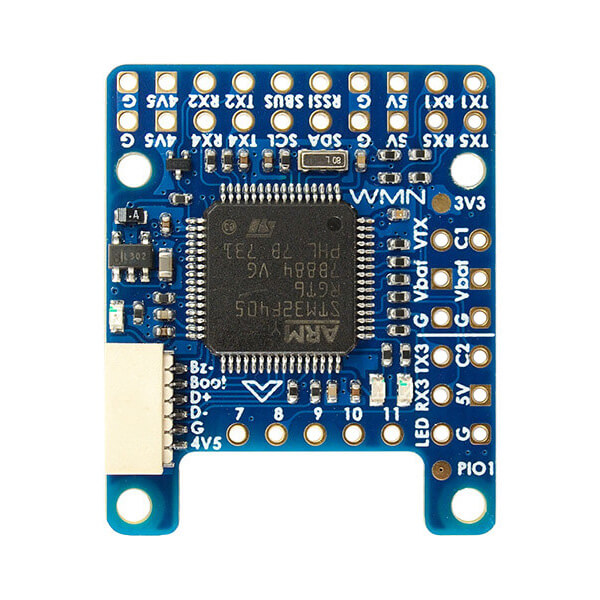

Layout

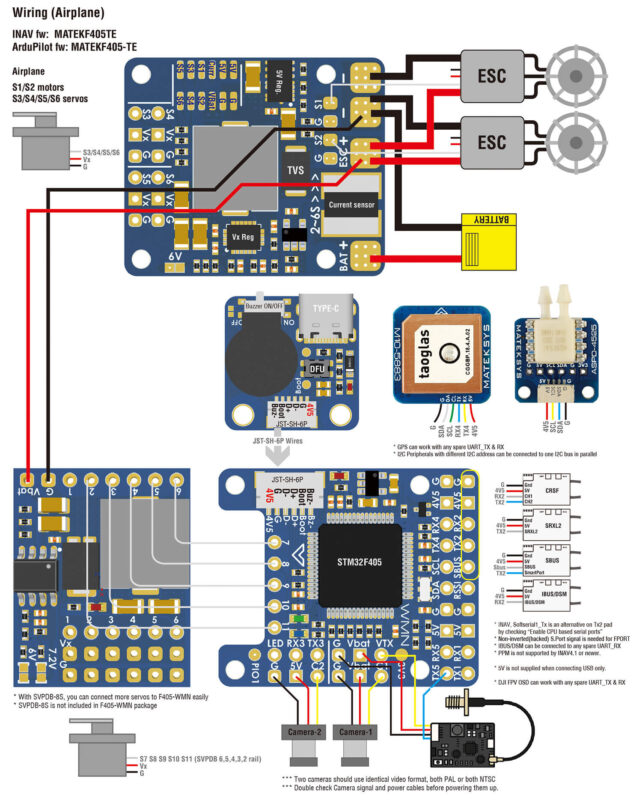

Wiring

Full FC specifications

• MCU: STM32F405RGT6, 168MHz , 1MB Flash
• IMU: ICM42688-P
• Baro: SPL06-001
• OSD: AT7456E
• Blackbox: 16M Flash
• 5x UARTs,  1x Softserial_Tx option(INAV)
• 12x PWM outputs
• 1x I2C
• 3x ADC (VBAT, Current, RSSI)
• 1x spare PINIO
• USB/Beep Extender with Type-C(USB2.0)
• Built in inverter on UART2-RX for SBUS input
• Switchable Dual Camera Inputs

• 6~30V DC IN (2~6S LiPo)
• 132A Current Sense (INAV Scale 250, ArduPilot 40A/V)
• PDB/Current sense resistor: 90A continuous, 132A burst.
• BEC 5V 1.5A for FC & Peripherals
• BEC Vx 5A for servos, 5V/ 6V option
• Vbat for VTX and camera
• LDO 3.3V 200mA
• Battery Voltage Sensor: 1k:20k

• ArduPilot: MatekF405-TE
• INAV: MATEKF405TE (INAV 5.0 or newer)

• Dimensions: 31 x 26 x 16.5 mm
• Mounting: 22 x 22mm, Φ2mm
• Weight: 10g

Includes

• 1x Mateksys F405-WMN flight controller with unsoldered headers.
• 1x USB(Type-C)/Beep (Passive buzzer) Extender + 20cm JST-SH-6P to JST-SH-6P cable for USB extender.
• Dupont 2.54 pins  (Board is shipped unsoldered)

More detailed wiring and configuration information

Detailed information about setting up this rc flight controller can be found at the website of matek: click here
