FrSky FAS150 ADV Smart Port and FBUS 150A Capable Current Sensor

FrSky FAS150 ADV Smart Port and FBUS 150A Capable Current Sensor

The FrSky FAS150 ADV current sensor is a current sensor for the FrSky Smart port and FPORT telemetry system. You can connect this variometer sensor to any receiver that supports Smart port and FPORT telemetry.

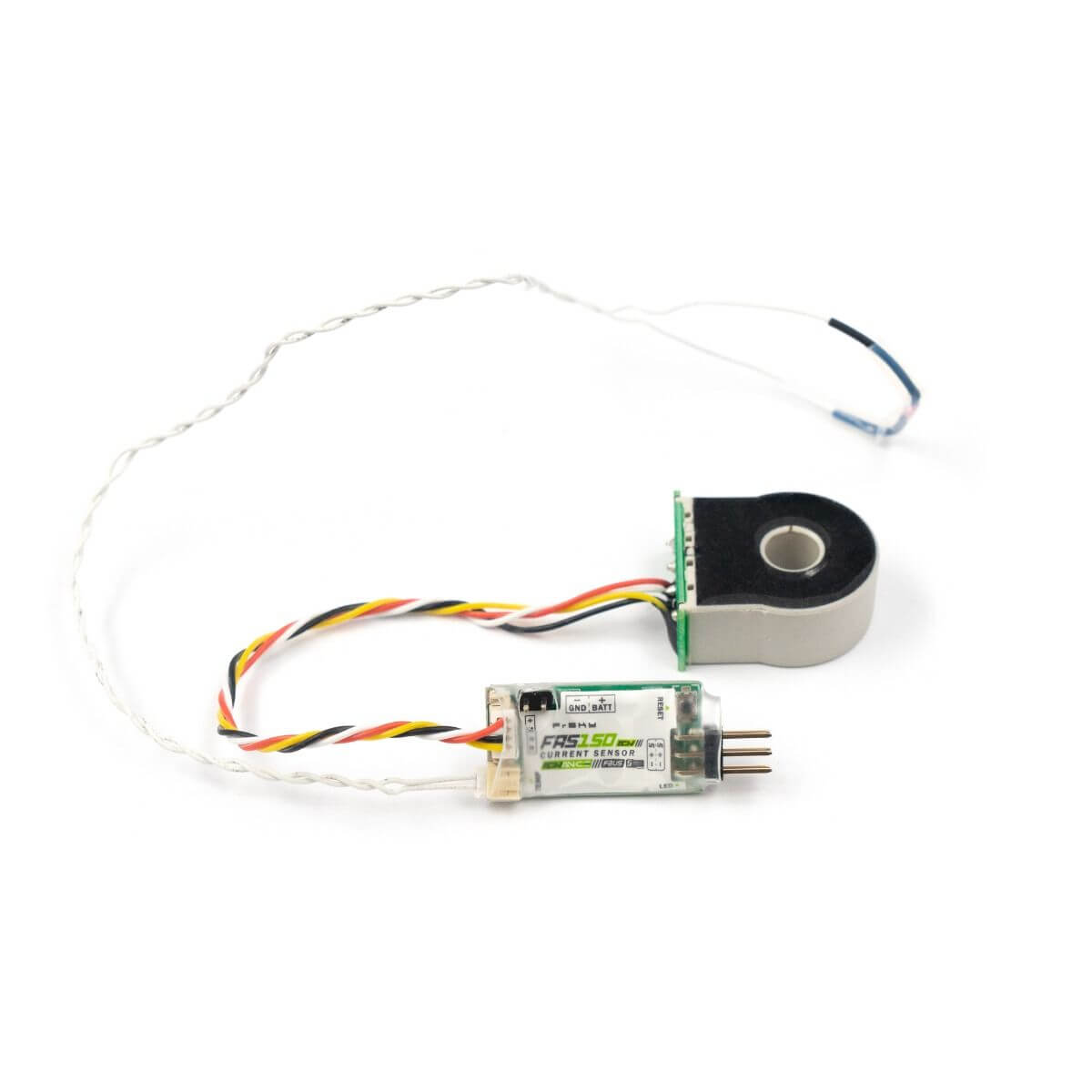

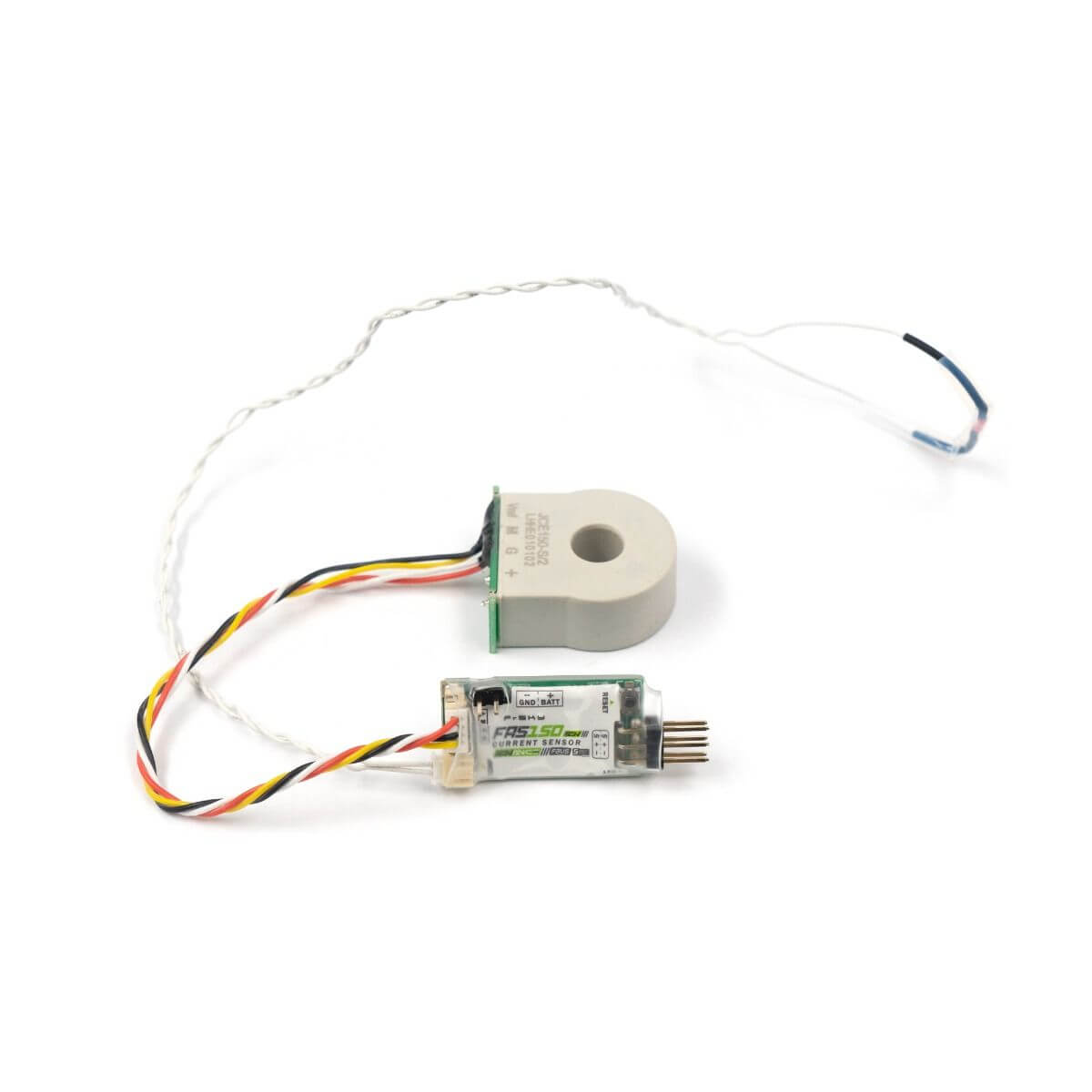

The current sensor can measure up to 60V and is capable current draws up to 150A . The current sensor is not connected in series but is using a separate current sensor that wraps around your power lead. The sensor is also capable of measuring temperature.

Read all information and capabilities of this telemetry sensor in the user manual: https://www.frsky-rc.com/wp-content/uploads/Downloads/Manual/FAS100%20ADV/FAS100%20ADV%20Manual.pdf

This product is also available as:

– 40A current sensor version: FrSky FAS40 ADV
– 100A current sensor version: FrSky FAS100 ADV
– 150A current sensor version: FrSky FAS150 ADV

Description

FrSky ADVANCE (ADV) series has comprehensive sensor types and enhanced the performance and capability of the original sensor line, all ADV sensors fully support FBUS protocol and they are also S.Port compatible. With the FBUS protocol, the ADV sensors can be seamlessly paired with the FBUS-capable receiver and further simplifying the builds setup.

The FAS150 ADV current sensor can be used to measure current (maximum 150A), and the battery voltage (60V) can be measured by soldering to the voltage sensing pad of the mainboard. The mainboard also includes a temperature sensor interface to meet the user’s needs for temperature data in specific applications.

Specifications of the FrSky FAS150 ADV current sensor

• Sensor Dimension: 31×26×12.5mm (L×W×H)
• Mainboard Dimension: 31×15.5mm (L×W)
• Weight: 18.2g
• Measurement Range: 0-150A
• Current Consumption: 30mA@5V
• Supplying Voltage (S.Port): 4-10V
• Measuring Voltage: 60V
• Temp Measuring Range: -55℃~250℃ / -67℉~482℉ (Deviation: ±5%)
• Compatible with FBUS/S.Port protocol
