RadioMaster Ranger Micro (2.4GHz)

€ 47.99 – € 71.99 Incl. VAT

The RadioMaster Ranger Micro is the stripped down version of our RadioMaster Ranger ELRS TX module.

Up to 1 Watt / F-1000Hz packet rates
Fits standard 5 pin JR bays / Efficient cooling system
Comes with T-Antenna

Available as Starter combo set with 3 receivers (2x RP1, 1x RP2) or without.

Ranger Version

Official RadioMaster EU repair & service center
Directly shipped from The Netherlands
Not as expected? Return your product within 14 days and get a full refund
Dutch/English/German/French speaking customer support
Buy directly at us and receive software & hardware support

SKU: N/A Category: Transmitter Modules

RadioMaster Ranger Micro ExpressLRS TX

The RadioMaster Ranger Micro is a stripped down version of the RadioMaster Ranger, while still giving you all the main functionality you need for a reliable ELRS RF link.

All hardware is safely protected by an injection molded plastic case and fits in the TX12 or TX16s or any 5 pin JR module bay compatible transmitter on the Market.

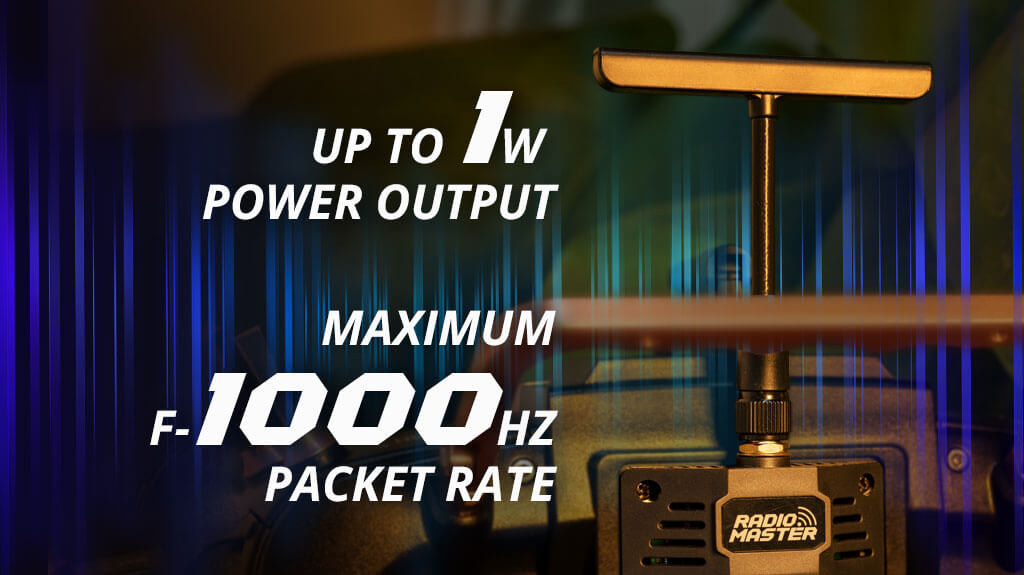

Output power, packet rates and cooling of the RadioMaster Ranger Micro

The Radiomaster Ranger Micro features up to 1 Watt output power.

Packet rates up to F-1000Hz are possible, to give you the lowest latency possible.

RadioMaster made sure to incorporate a high quality and highly efficient cooling system, to keep your hardware cooled under all circumstances.

Available as starter set or stand-alone

The RadioMaster Ranger Micro is available as Starter Set or Stand alone.

Stand-Alone

1x RadioMaster Ranger Micro module + T-Antenna

Starter set

1x RadioMaster Ranger Micro Module + T-Antenna
2x RP1 Receiver
1x RP2 Receiver

Features oversight

★ High-efficiency cooling system
★ Up to 1Watt Power output
★ Wifi and Bluetooth support
★ Packet rates up to F-1000Hz
★ T-antenna included
★ 5 pins JR connector, support TX16S MKII/TX12 MKII or JR standard 5pin socket radios.

Ranger serie comparison

RadioMaster Ranger Micro

Features

Up to 1 Watt output power

Packet rates up to F-1000Hz

Wifi and Bluetooth Support

High-efficiency cooling system

T-Antenna included

Compatible with 5 pin JR module bays (TX12, TX16S)

RadioMaster Ranger

Features

Up to 1 Watt output power

Packet rates up to F-1000Hz

Wifi and Bluetooth Support

High-efficiency cooling system

T-Antenna included

Compatible with 5 pin JR module bays (TX12, TX16S)

Compatible with 8 pin Nano module bays (Zorro)

OLED Display

5 navigation keys + customizable shortcut button

Micro and Nano adapters included

Rugged CNC Case

Built-in Accelerometer

RGB lightning effects

RadioMaster Ranger Nano

Features

Up to 1 Watt output power

Packet rates up to F-1000Hz

Wifi and Bluetooth Support

High-efficiency cooling system

T-Antenna Included

Compatible with 8 pin Nano module bays (Zorro)

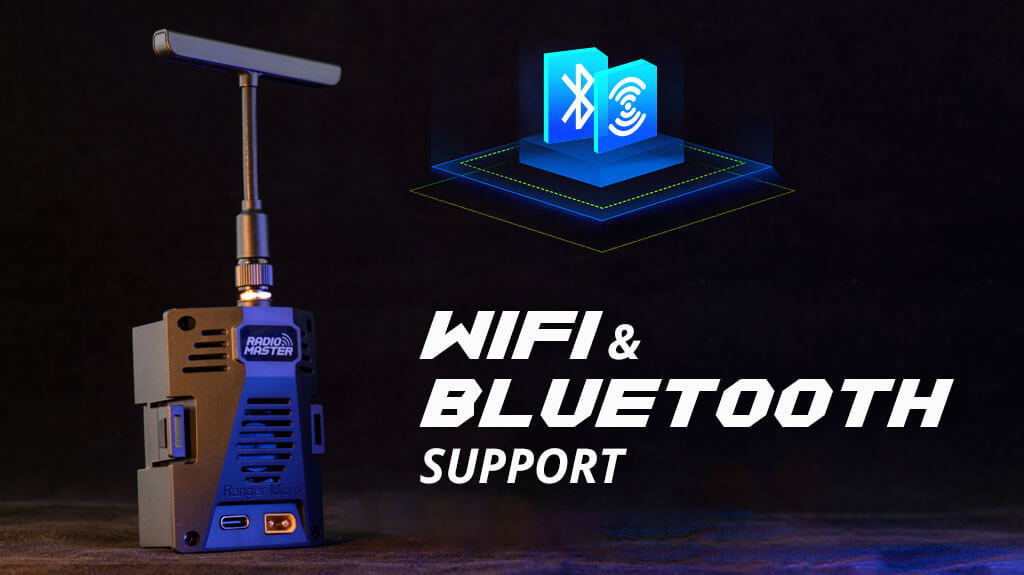

WiFi & Bluetooth support

Built-in Wifi and Bluetooth support makes it possible to connect your RadioMaster Ranger Micro to your wifi network for updates or to use your tx module as wireless joystick using bluetooth.

JR module bay adapter

The RadioMaster Ranger Micro comes with a JR module bay adapter.

The Ranger Micro natively fits our transmitters with a full JR bay, like the TX12 and TX16S.

All other standard 5 pin JR bay module radio’s should also be able to use our ELRS module*

*As long as soft- and hardware supports it.

Don't forget your accessory....

Quick View

ExpressLRS

RadioMaster RP1 ExpressLRS Nano Receiver V2 (2.4GHz)

€ 22.79 Incl. VAT

RadioMaster RP2 ExpressLRS Nano Receiver

Quick View

ExpressLRS

RadioMaster RP2 ExpressLRS Nano Receiver V2 (2.4GHz)

€ 22.79 Incl. VAT

Hot!

RadioMaster RP3 ExpressLRS receiver dual antenna

Quick View

ExpressLRS

RadioMaster RP3 ExpressLRS Nano Receiver V2 (2.4GHz)

€ 26.95 Incl. VAT

Specifications

Item: Ranger Micro Module
Regulatory Domain: ISM2400
MCU: ESP32(main), ESP8285(aux,as espbackpack)
RF chip: SX1281IMLTRT
Frequency Range: 2400 MHz to 2480 MHz
Maximum packet rate: 500Hz/F1000Hz
Minimum receiver refresh rate: 25Hz
RF Output Power: 30dBm for FCC, 20dBm for CE (Adjustable by LUA)
Wifi Support: Yes
Bluetooth support: Yes

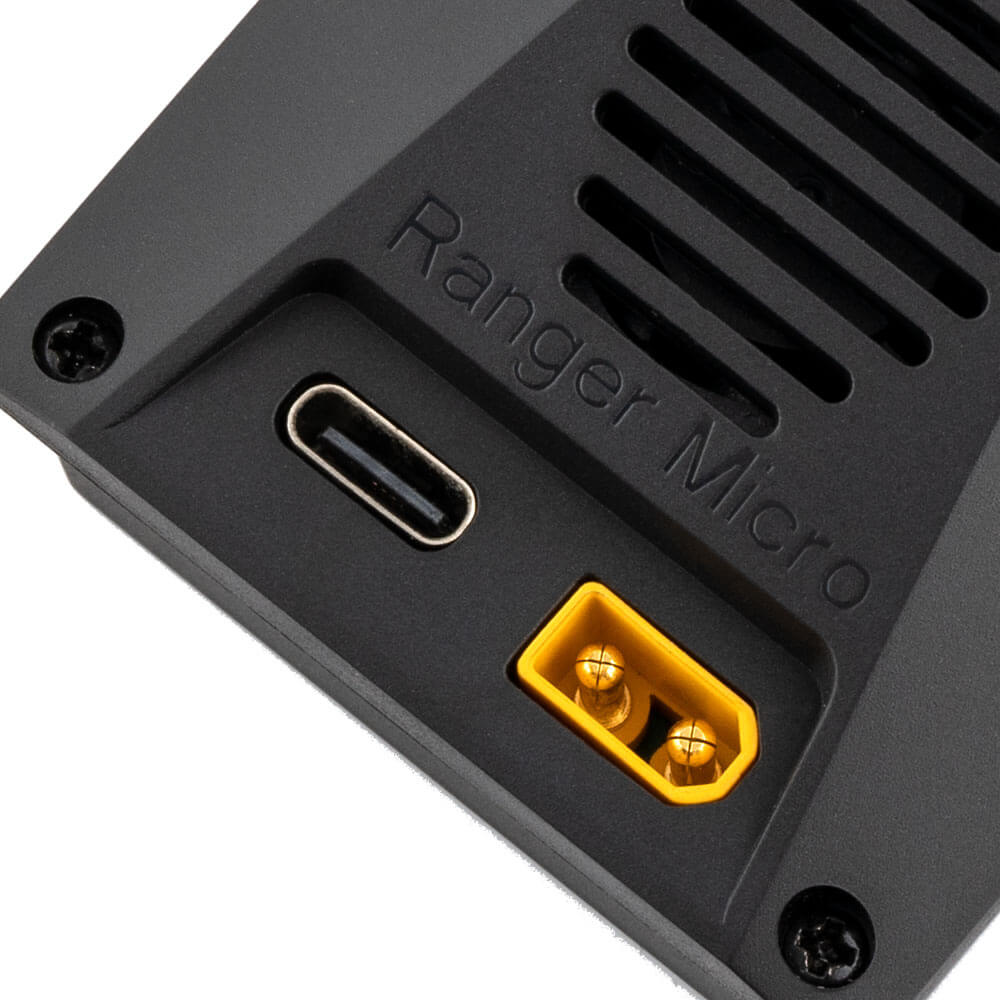

XT30 Power supply voltage: DC 6V – 16V
Weight: 50g (with Moxon antenna）

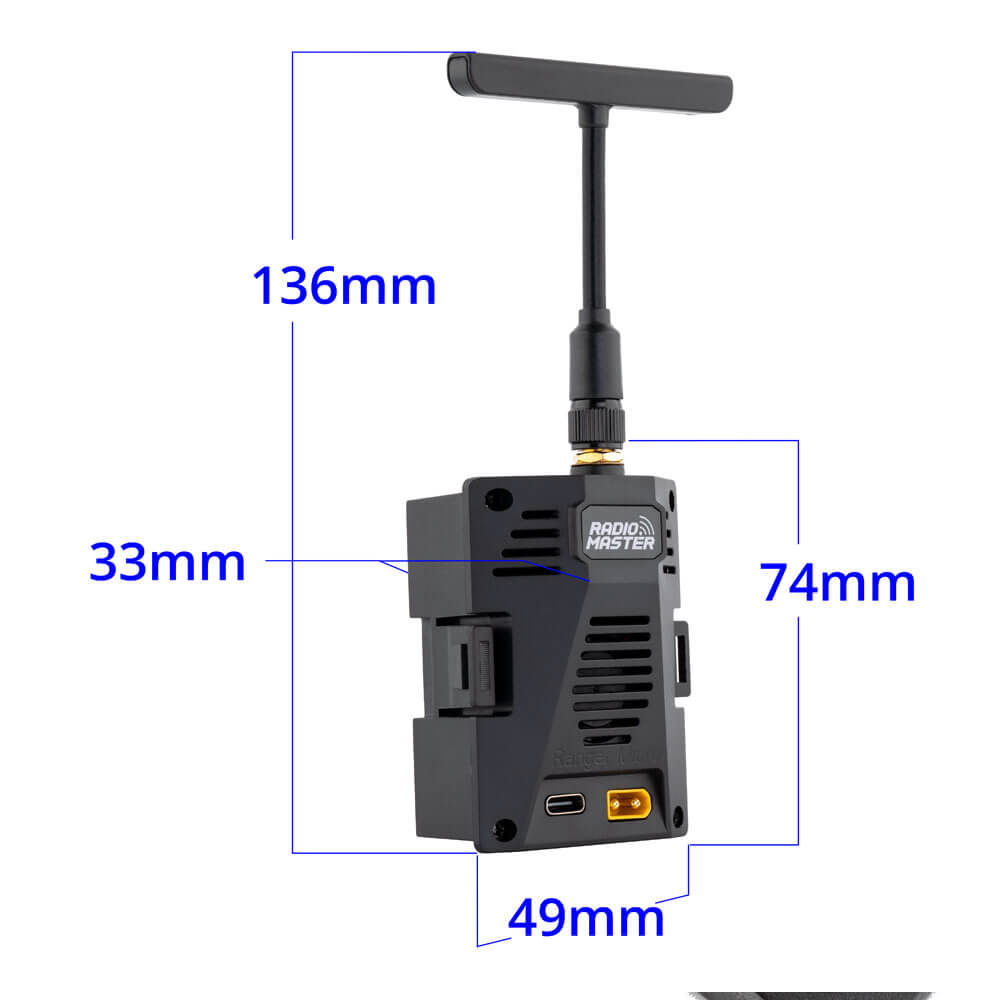

Dimension: 136*49*33mm , 50g (with Moxon antenna) / 74*49*33mm , 40.5g (without antenna)
