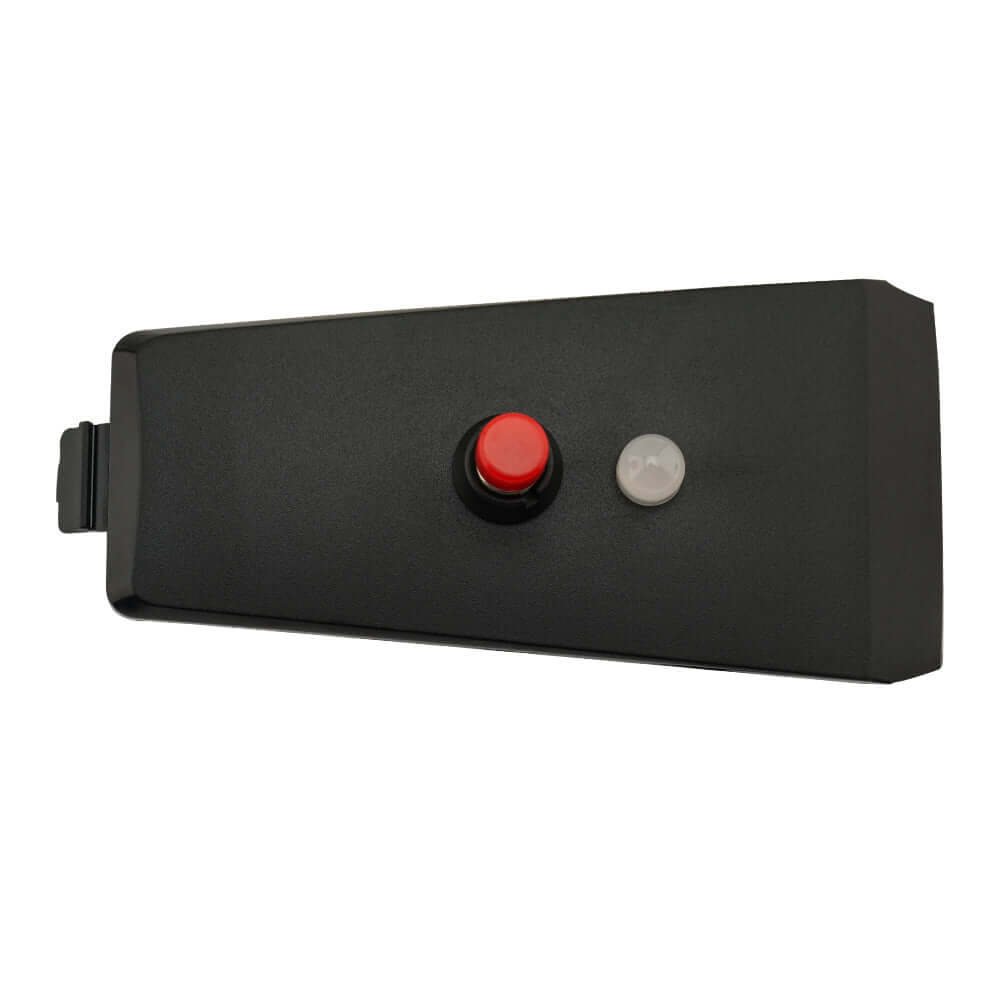

RadioMaster MT12 Gyro Control Module

Add a new way of controlling some channels of your RadioMaster MT12 by using this RadioMaster MT12 Gyro Control Module. The 2 axis gyro (X and Y axis) picks up the motion of your hand and translates it to an X axis and Y axis value, making it possible to control things like a pan/tilt gimbal, RC tank turret, steering wheels and more by simply rotating your MT12 transmitter.

When placed in the RadioMaster MT12 expansion slot, this two-axis gyro translates your hand movements into the control stream via the advanced mixing and programmability of EdgeTX.

We expect this product to be in stock at the end of June 2024.

Specifications

• Power Supply: DC 3.3V
• Weight: 8.3g
• Dimensions: 65.0*33.0 mm
• X-axis Angle Range: 90°  [-45° to 45°]
• Y-axis Angle Range: 90°  [-45° to 45°]

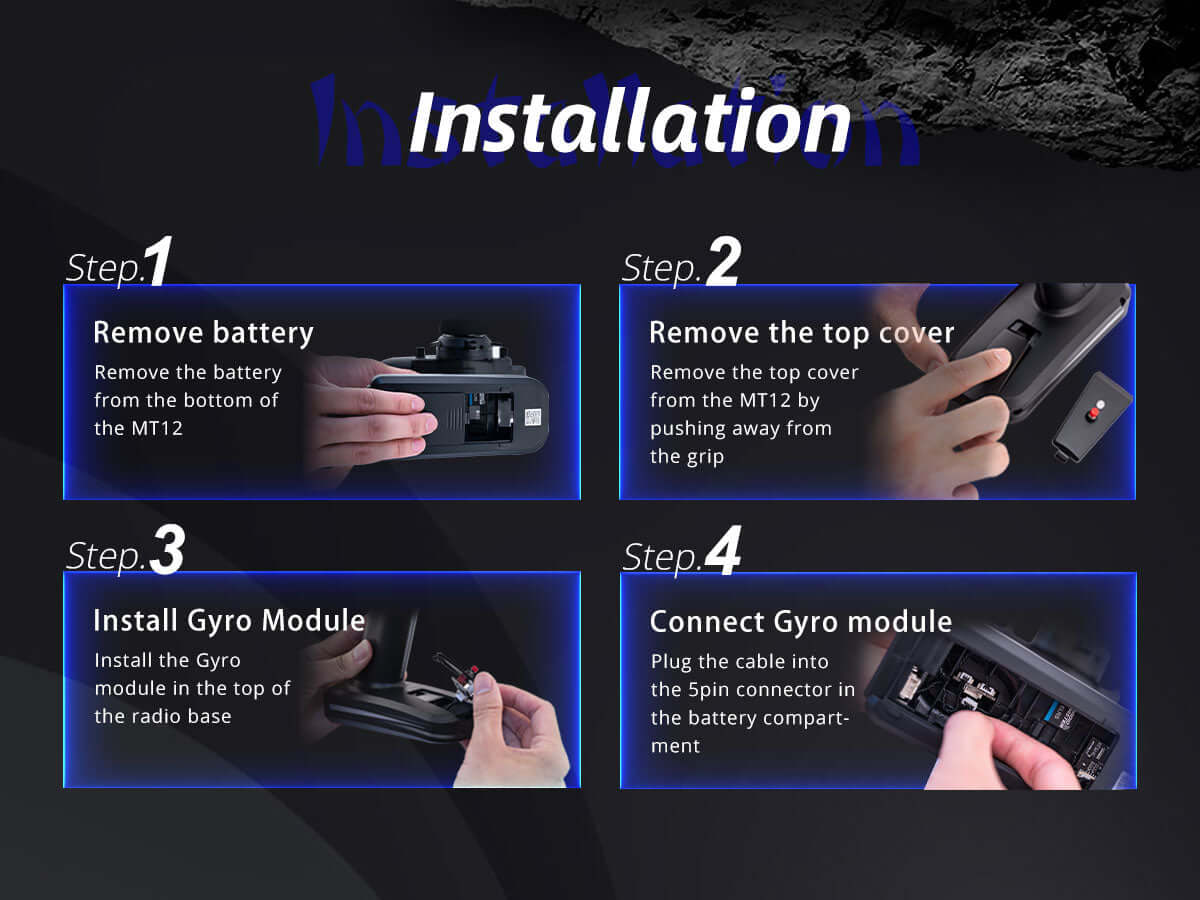

Installation

1. Remove the battery from the bottom of the MT12
2. Remove the top cover from the MT12 by pushing away from the grip
3. Install the Gyro module at the top of the radio base
4. Plug the cable into the 5pin connector in the battery compartment

Package Includes

• 1 * MT12 Gyro Control Module

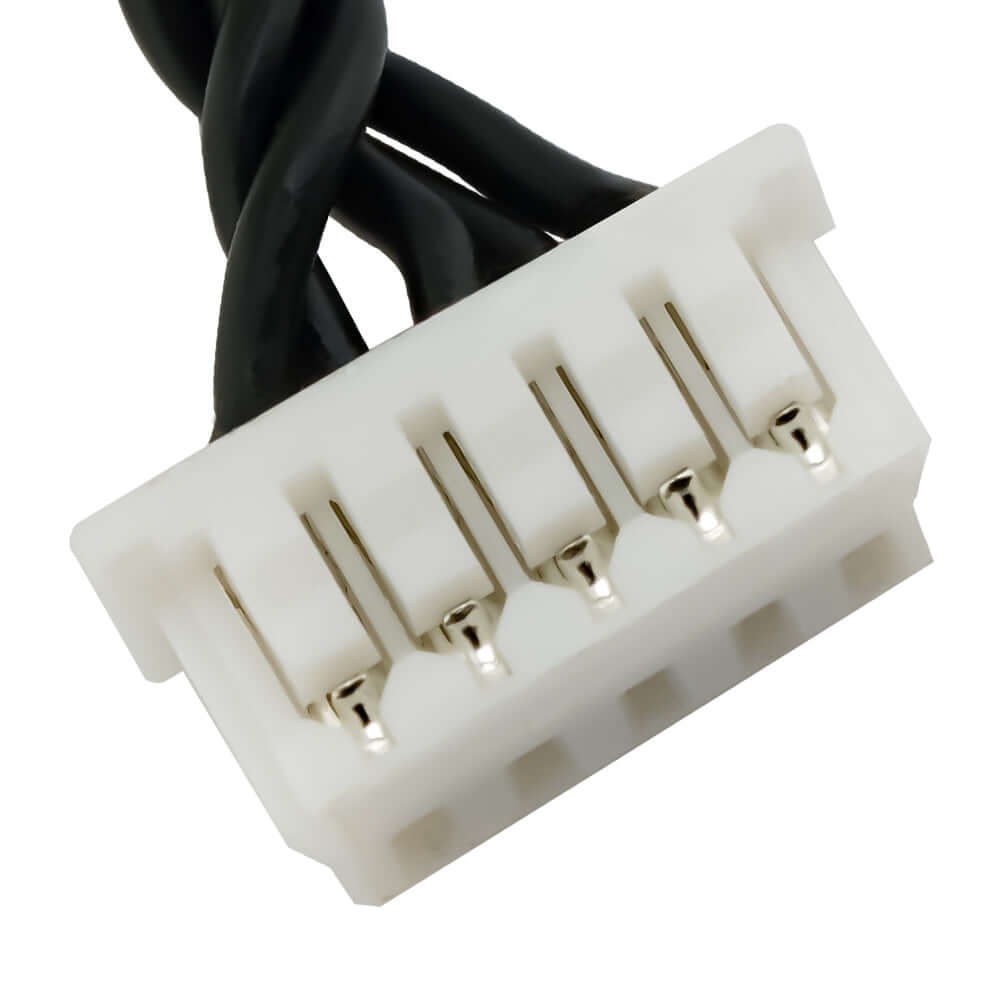

• 1 * 5pin JST cable（installed on Module）
