RadioMaster ER5A V2 ExpressLRS PWM receiver (2.4GHz) (5 channels)

RadioMaster ER5A V2 PWM receiver for ExpressLRS (5 channels)

The Radiomaster ER5A V2 receiver is the successor of the RadioMaster ER5A ExpressLRS receiver

This 5 channel PWM receiver is suitable for the ExpressLRS protocol.

ExpressLRS offers high-performance, high reliability, highly flexible configuration, ultra-fast response speeds, and a long rc range. Read all about ExpressLRS on https://www.expresslrs.org/

The ER5A V2 ELRS receiver can drive up to 5 servos and has built-in receiver voltage telemetry and battery telemetry with the ability to automatically detect which voltage input to use. It is designed for all types of surface & marine R/C applications.

Features

• Based on the Revolutionary ExpressLRS System
• High performance, high reliability, flexible configuration, fast response speed and ultra-long range
• Support 5 PWM Channels
• Automatically detects voltage telemetry of external battery voltage or receiver battery / ESC BEC voltage

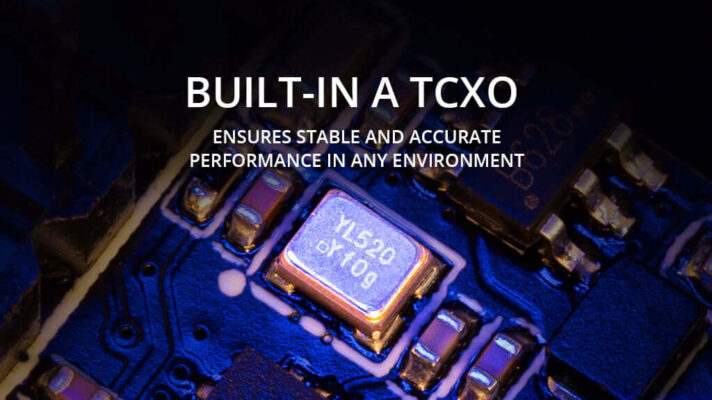

• Built-in a TCXO (temperature compensated crystal oscillator), ensures stable and accurate performance in any environment
• Optimized ground up PCB design
• Supports Wi-Fi updates and WEBUI configuration
• Compact size, easy to install. Perfect for aircraft applications

Specification

• Item: ER5A V2 2.4GHz ELRS PWM Receiver
• Power supply: DC 4.5-8.4V
• Antenna type: High-sensitivity antenna
• Wireless Protocol: ELRS 3.3.0 pre-installed
• Channels: 5
• Telemetry Voltage Detection Range: DC 4.0 – 35V
• RF Telemetry: Yes
• Telemetry Power: 10mw
• Weight: 6.7 grams
• Size: 37.0 * 19.3 * 13.0mm
• Firmware: Device Category: RadioMaster 2.4 GHz / Device: RadioMaster ER5A 2.4GHz PWM RX

Firmware

Device Category: Radiomaster 2.4Ghz
Device: RadioMaster ER5A 2.4GHz PWM RX

Dimensions

The RadioMaster ER5A V2 ELRS (ExpressLRS) receiver dimensions are 30mm (Length) * 18.5mm (Width) * 13mm (height).

Package Includes

• 1 * RadioMaster ER5A V2 2.4GHz ExpressLRS PWM Receiver
• 1 * Voltage telemetry wire
• 1* Manual
