RadioMaster ER5C V2 ExpressLRS PWM receiver (2.4GHz) (5 channels)

RadioMaster ER5C V2 PWM receiver for ELRS (5 channels)

The Radiomaster ER5C V2 receiver is the successor of the RadioMaster ER5C.

This 5 channel PWM receiver is suitable for the ExpressLRS protocol.

ExpressLRS offers high-performance, high reliability, highly flexible configuration, ultra-fast response speeds, and a long rc range. Read all about ExpressLRS on https://www.expresslrs.org/

The ER5C V2 ELRS receiver can drive up to 5 servos and has built-in receiver voltage telemetry and battery telemetry with the ability to automatically detect which voltage input to use. It is designed for all types of surface & marine R/C applications.

Features

• Based on the Revolutionary ExpressLRS System
• High performance, high reliability, flexible configuration, fast responsespeed and ultra-long range
• Support 5 PWM Channels
• Automatically detects voltage telemetry of external battery voltage or receiver battery / ESC BEC voltage
• Built-in a TCXO (temperature compensated crystal oscillator), ensures stable and accurate performance in any environment
• Optimized ground up PCB design
• Supports Wi-Fi updates and WEBUI configuration
• Compact size, easy to install. Perfect for surface & marine R/C applications

Specification

• Item: ER5C V2 2.4GHz ELRS PWM Receiver
• Power supply: DC 4.5-8.4V
• Antenna type: High-sensitivity antenna
• Wireless Protocol: ELRS 3.3.0 pre-installed
• Channels: 5
• Telemetry Voltage Detection Range: DC 4.0 – 35V
• RF Telemetry: Yes
• Telemetry Power: 10mw
• Weight: 5.7 grams
• Size: 30.0 * 18.5 * 13.0mm
• Firmware: Device Category: RadioMaster 2.4 GHz / Device: RadioMaster ER5C 2.4GHz PWM RX

Firmware

Device Category: Radiomaster 2.4Ghz
Device: RadioMaster ER5C 2.4GHz PWM RX

Dimensions

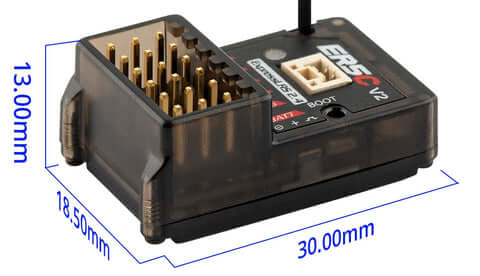

The RadioMaster ER5C V2 ELRS (expressLRS) receiver dimensions are 30mm (Length) * 18.5mm (Width) * 13mm (height).

Package Includes

• 1 * RadioMaster ER5C V2 2.4GHz ELRS PWM Receiver
• 1 * Voltage telemetry wire
• 1* Manual
